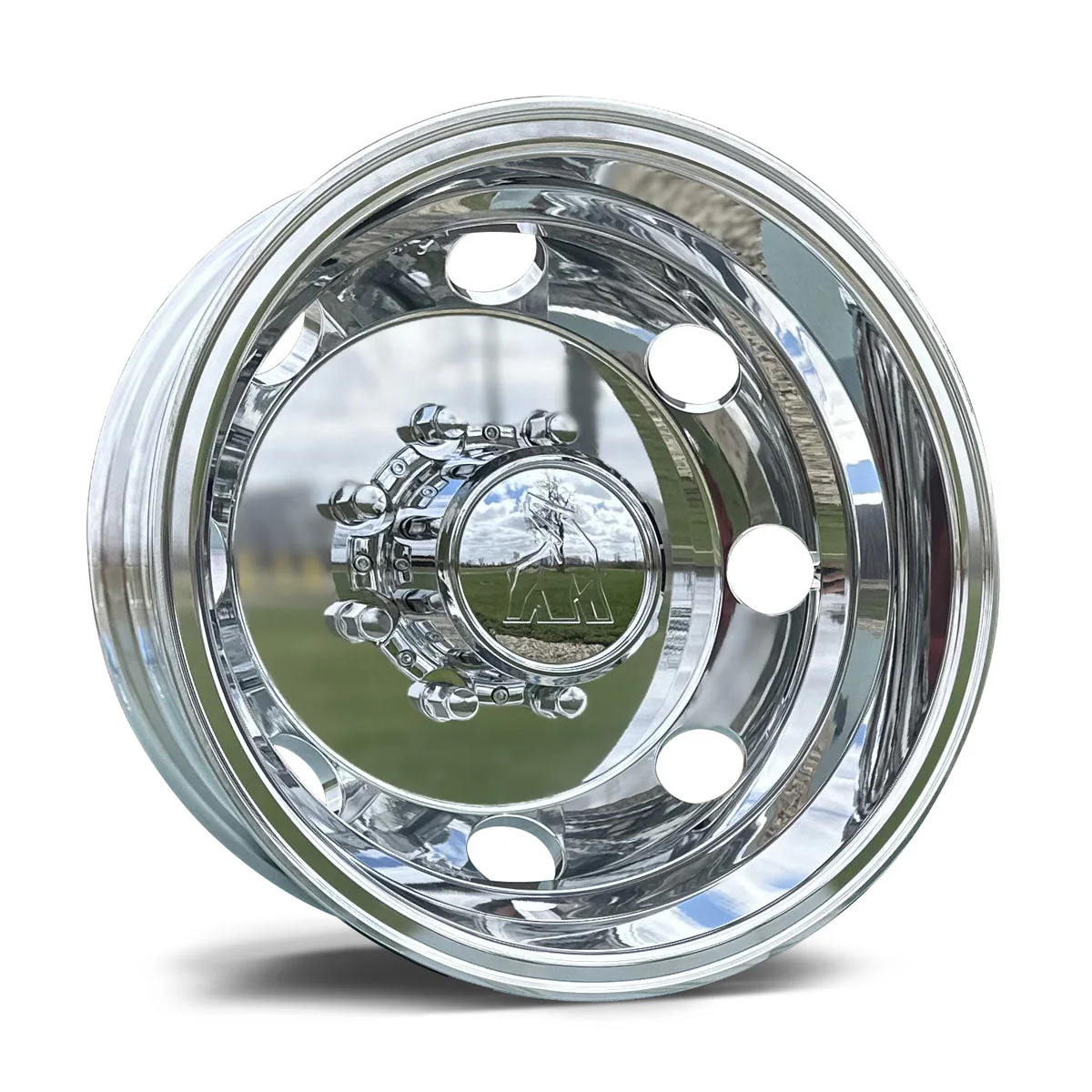

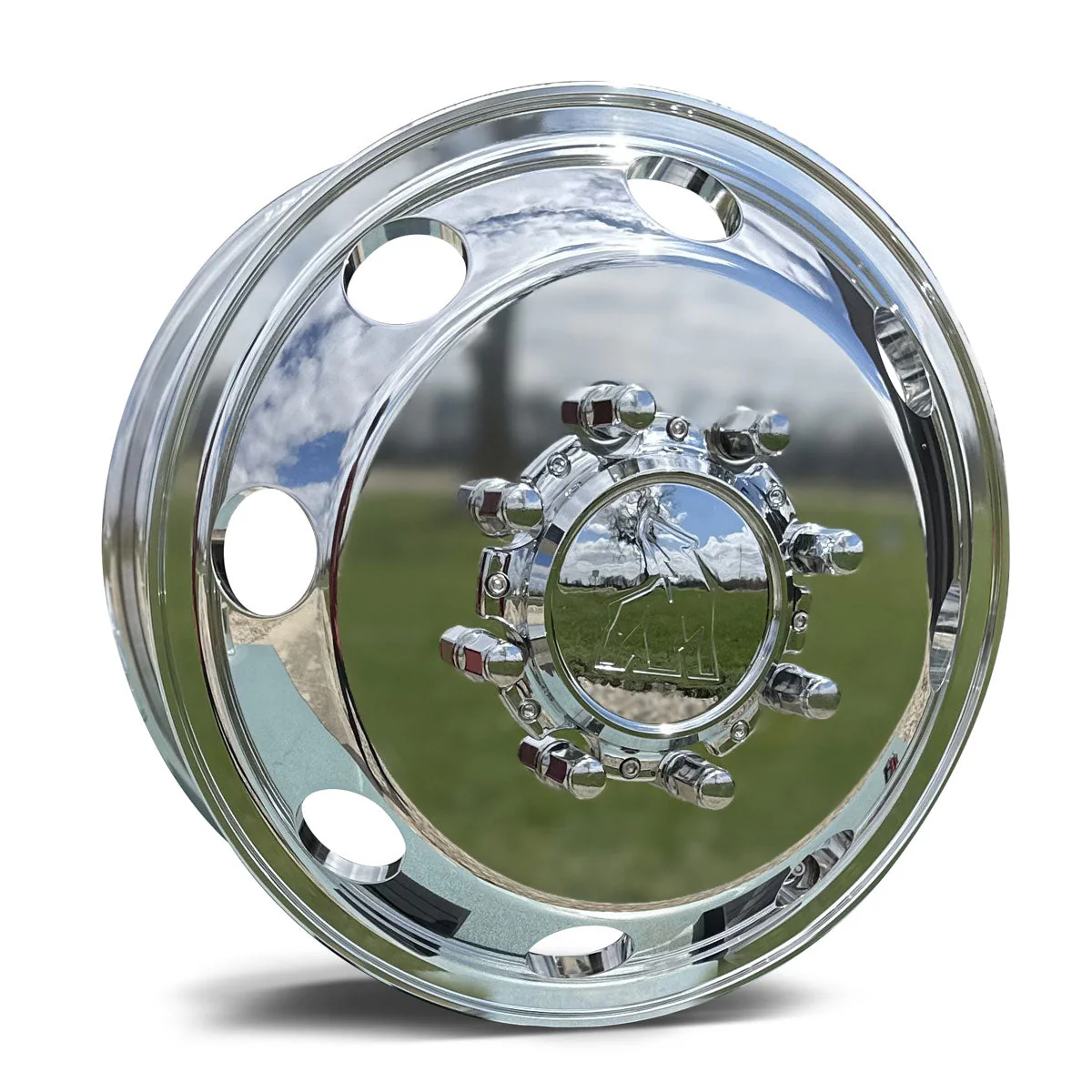

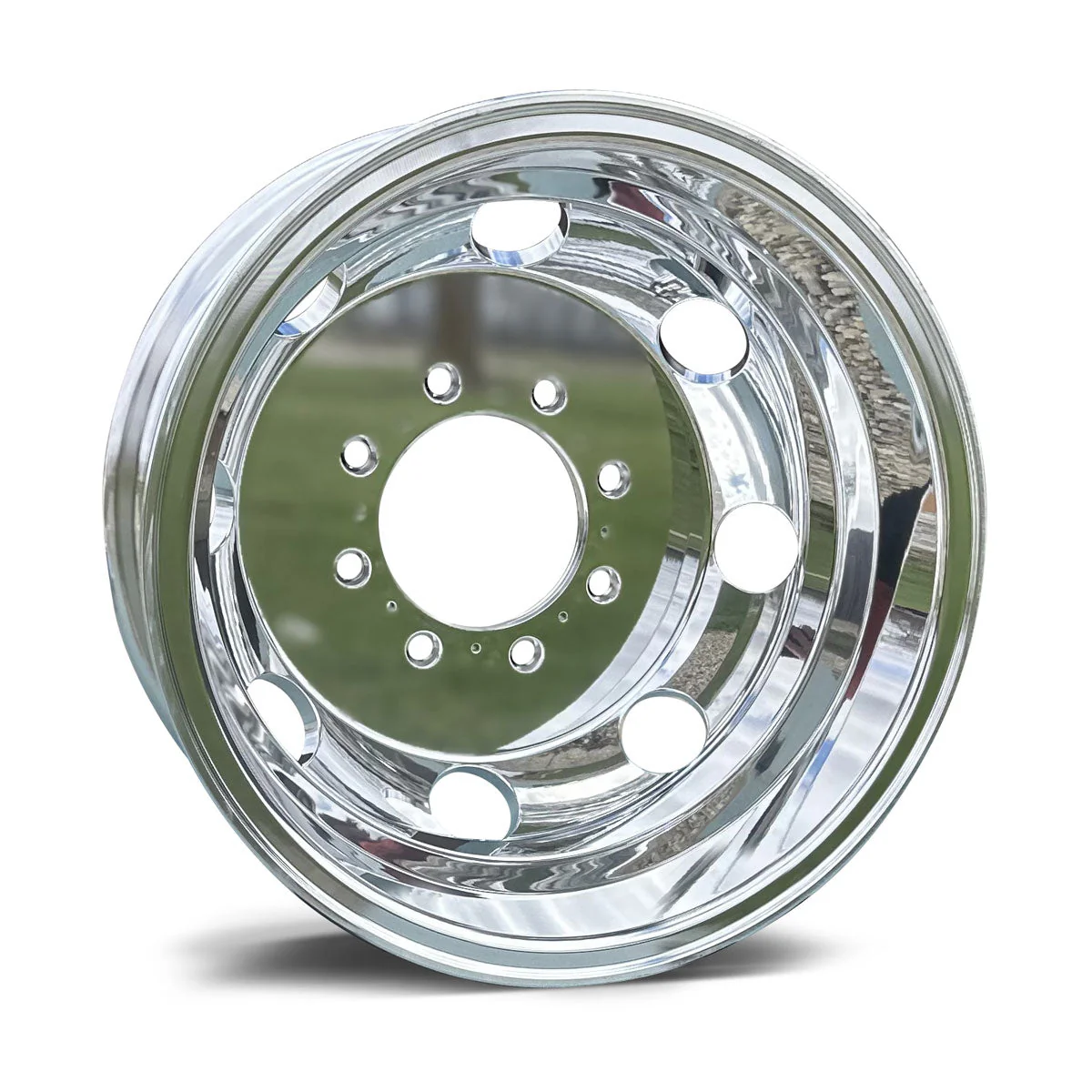

Upgrade your Ford E-Series dually with the strength and premium finish of Northstar forged aluminum wheels. This complete 16x6 wheel kit is engineered specifically for Ford E350 and E450 dual rear wheel chassis, delivering superior durability, proper hub-pilot fitment, and a clean mirror-polished appearance.

Manufactured from forged 6061-T6 aluminum alloy, these wheels provide significantly greater strength and structural integrity compared to cast aluminum or factory steel wheels. The forging process produces a more uniform grain structure, resulting in a wheel that is lighter, stronger, and better suited for demanding commercial applications.

Each wheel features a mirror-polished finish on both sides, giving your vehicle a clean, professional look whether you’re operating a commercial fleet, RV conversion, shuttle bus, or service vehicle.

Designed with a hub-pilot dual-mount system, these wheels ensure precise alignment, improved ride quality, and secure clamping under heavy loads.

Forged For Work. Built to Last.

Northstar wheels are built with the philosophy “Forged for Work.”

The forged aluminum construction provides:

• Greater impact resistance compared to cast wheels

• Uniform metal structure for smoother ride quality and improved tire wear

• Higher thermal conductivity to help brakes, tires, and suspension run cooler

• Natural corrosion resistance, reducing maintenance and preventing rust

These advantages make Northstar wheels ideal for commercial trucks, RV cutaways, shuttle buses, ambulances, and fleet vehicles.

What’s Included

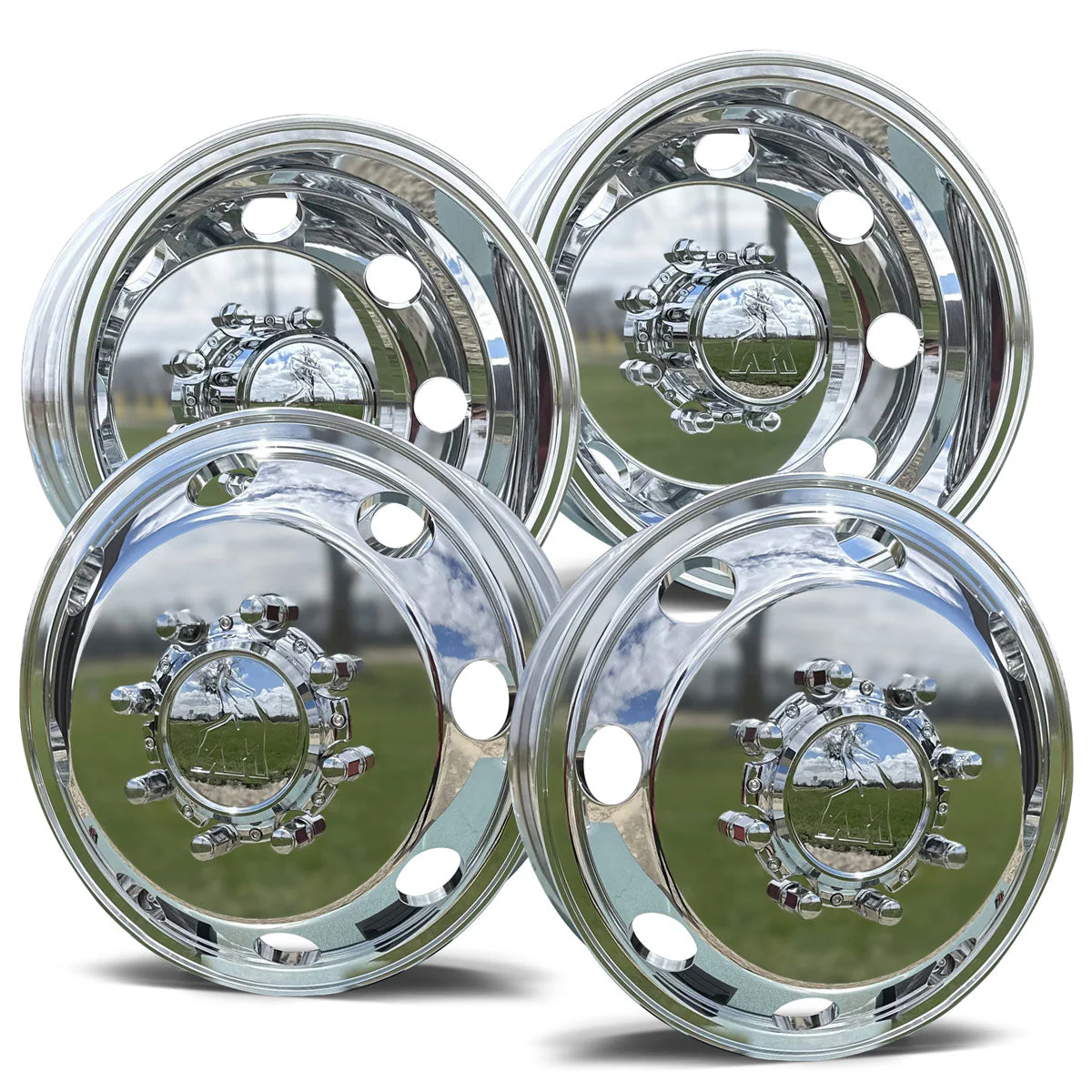

✔ (4) Northstar 16x6 Forged Aluminum Wheels

Mirror polished finish on both sides

✔ (2) Front Chrome Hub Covers

✔ (2) Rear Chrome Hub Covers

✔ (32) Chrome Lug Nuts

✔ TR553 Valve Stems Installed

Everything needed for a complete installation.

Wheel Specifications

Wheel Size: 16 x 6

Material: Forged 6061-T6 Aluminum Alloy

Finish: Mirror Polished (Both Sides)

Bolt Pattern: 8 x 6.5 (8 x 165.1mm)

Hub Bore: 4.88”

Mounting: Hub Pilot Dual-Mount (Two-Piece Flange Nut)

Hand Holes: 8

Offset: 5.4”

Weight: 23 lbs

Load Rating:

3,000 lbs per wheel @ 95 PSI

Valve Stem: TR553 Installed

TPMS Valve Stems Available for 2021+ Models

Vehicle Fitment

Designed to fit the following dual rear wheel applications:

Ford E-Series DRW

Ford E350 DRW

Ford E450 DRW

• 1992–2022 — All Models

• 2023–Present — 2WD Models Only

Perfect for:

• Commercial vans

• Shuttle buses

• RV cutaway chassis

• Ambulances

• Box trucks

• Utility and service fleets

Additional Compatibility

1984–1997 Ford F350 DRW

Direct bolt-on fit for classic OBS Ford dually trucks.

Why Choose Northstar Forged Wheels?

✔ Forged aluminum construction for superior strength

✔ Lighter than steel and stronger than cast wheels

✔ Mirror polished finish on both sides

✔ Improved heat dissipation for brakes and tires

✔ Excellent corrosion resistance

✔ Complete installation hardware included

✔ Ideal for commercial and fleet vehicles

✔ Free shipping on all orders

✔ Backed by a 5-Year Manufacturer Warranty

Built for Commercial Use

Whether you’re upgrading a work van, shuttle bus, RV chassis, or fleet vehicle, Northstar forged wheels deliver the strength, durability, and professional appearance needed for demanding applications.

With forged construction and a polished finish on both sides, this wheel kit provides a long-lasting upgrade designed to perform under heavy loads while keeping your vehicle looking sharp.
