Northstar 22.5” x 6.75” Direct Bolt-On Wheel Kit – Fits 2005–Present Ford F-450/F-550 (6-Wheel Set)

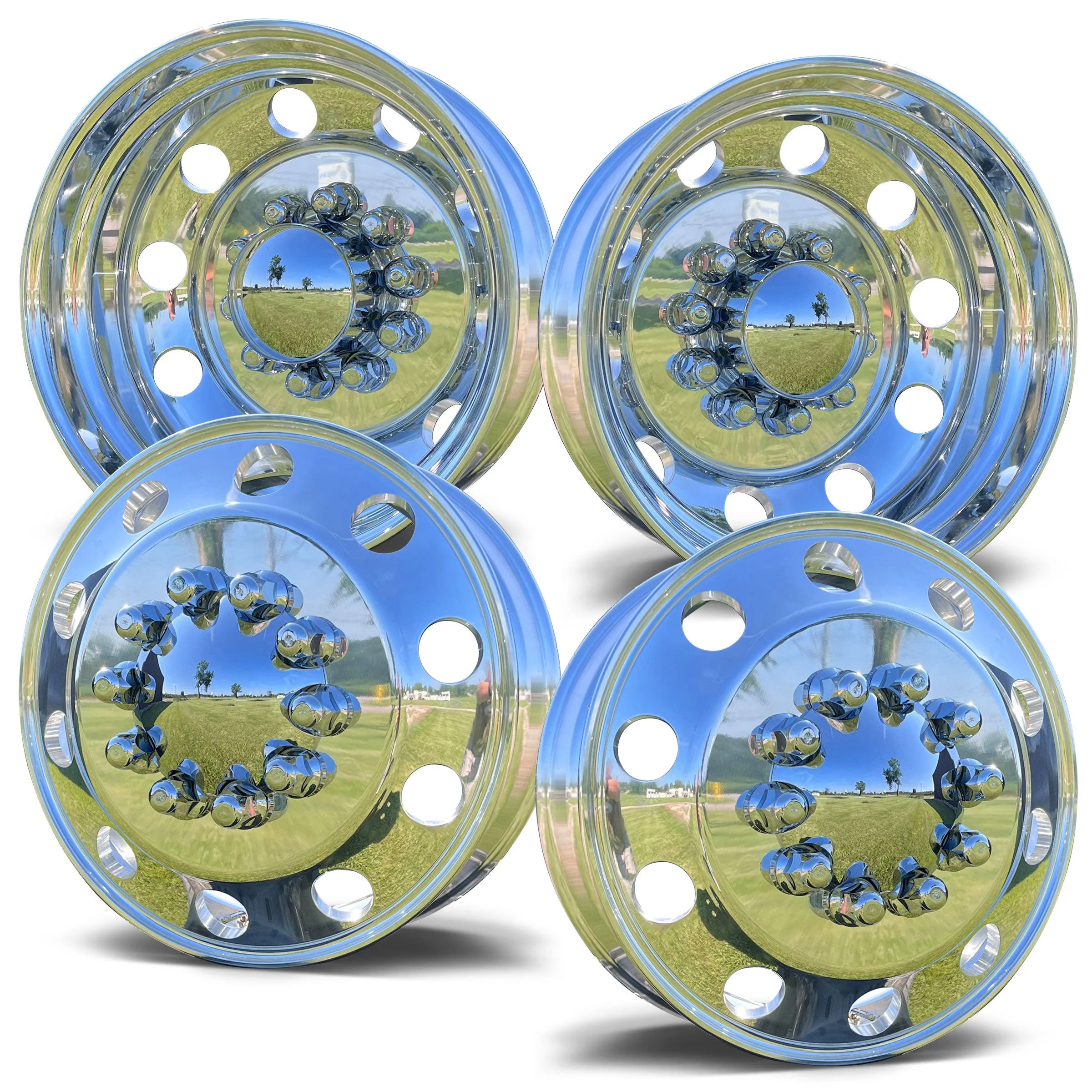

Upgrade your Ford F-450 or F-550 with this heavy-duty 22.5” direct bolt-on wheel kit from Northstar, designed for strength, reliability, and a professional, polished finish. This 6-wheel set includes four mirror-polished aluminum wheels and two steel inner dual wheels, giving you both high-end aesthetics and work-ready durability—all in one package.

Built for hub-piloted, dual-mounting systems with a 10x225mm bolt pattern and 170.1mm hub bore, this setup is a direct replacement for 2005–Present F-450 and F-550 models. No adapters or conversions needed.

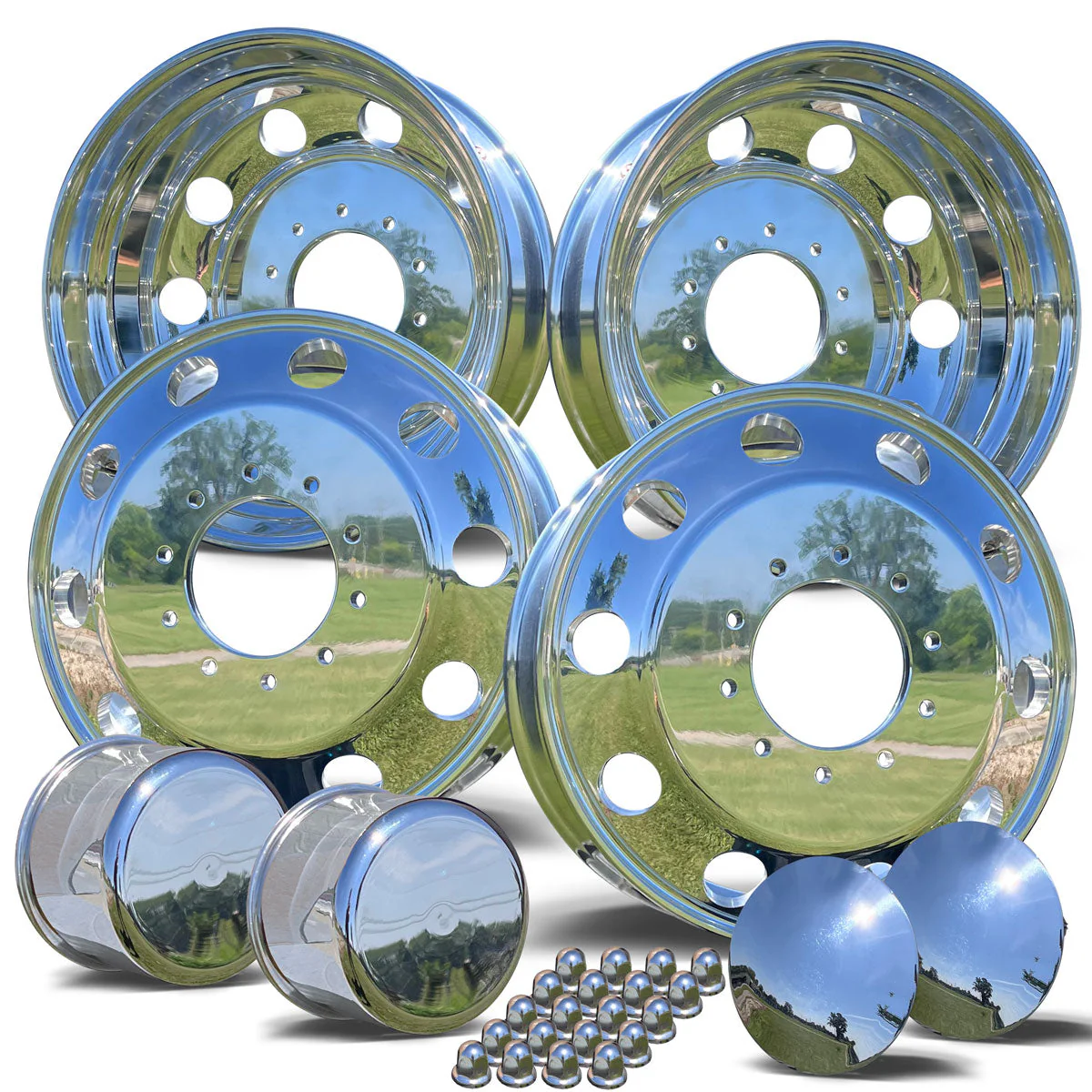

🔧 Kit Includes:

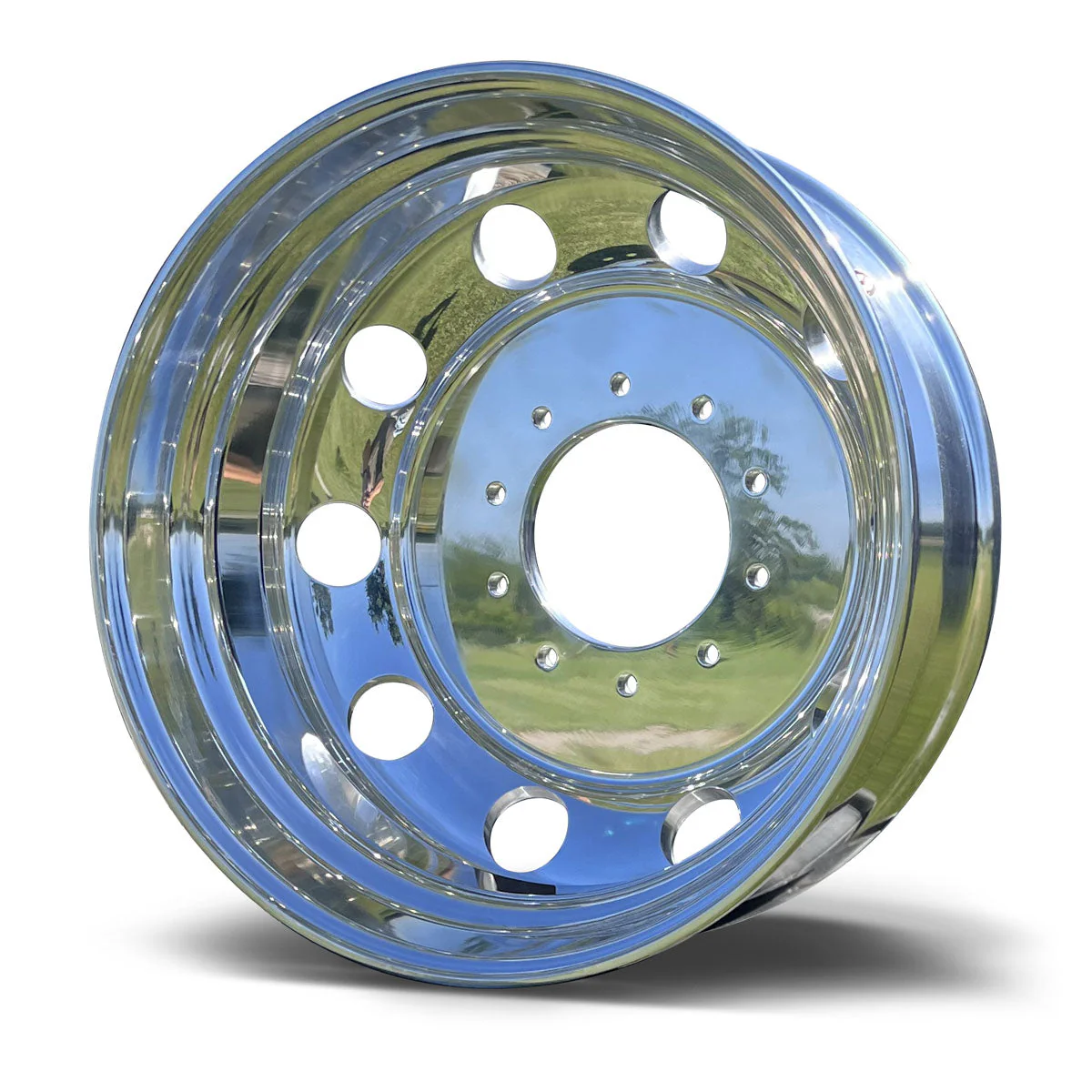

• (4) Northstar 22.5” x 6.75” Aluminum Wheels – Mirror polished on both sides

• (2) Jantsa 22.5” x 6.75” Steel Inner Dual Wheels

💡 Hub/Nut Cover Options:

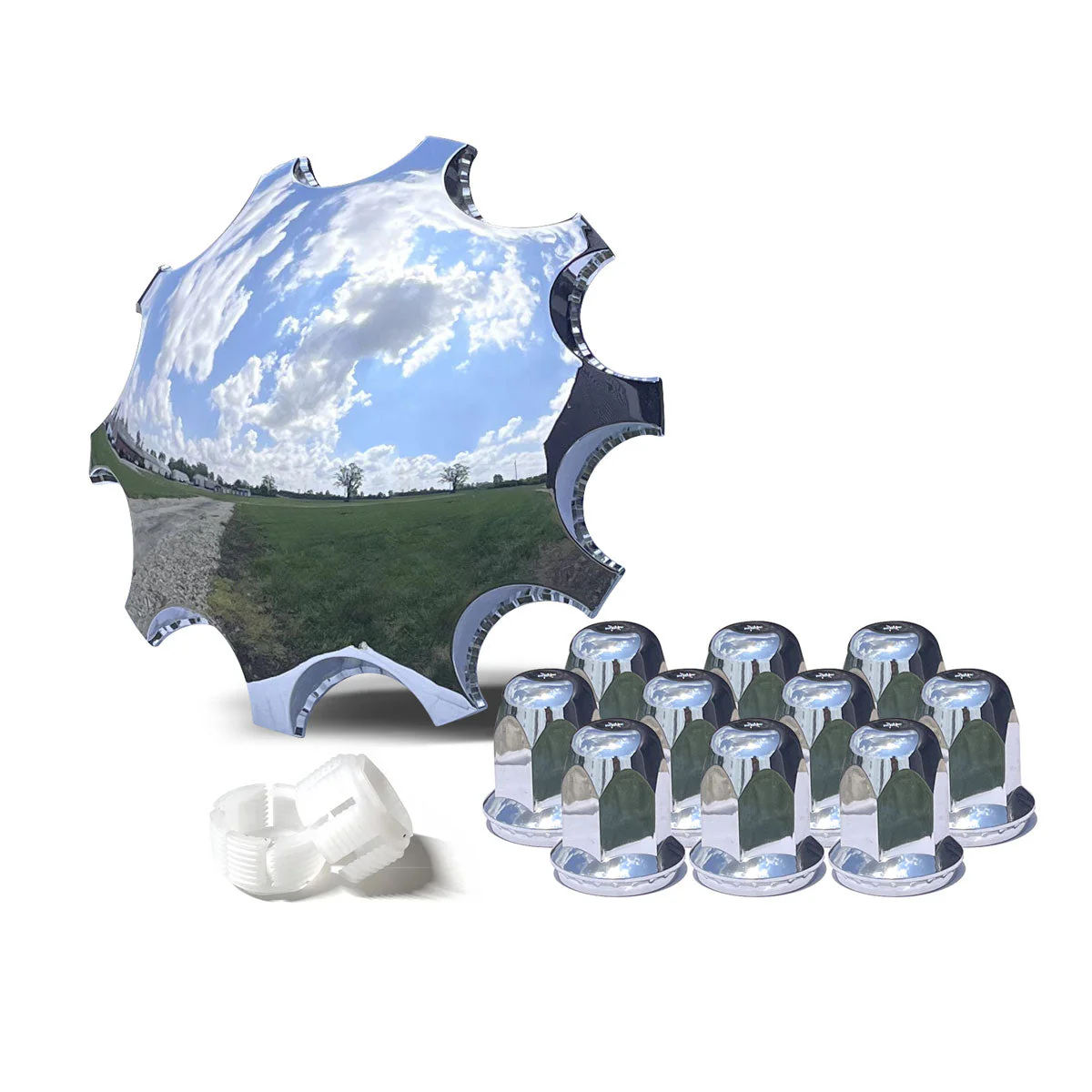

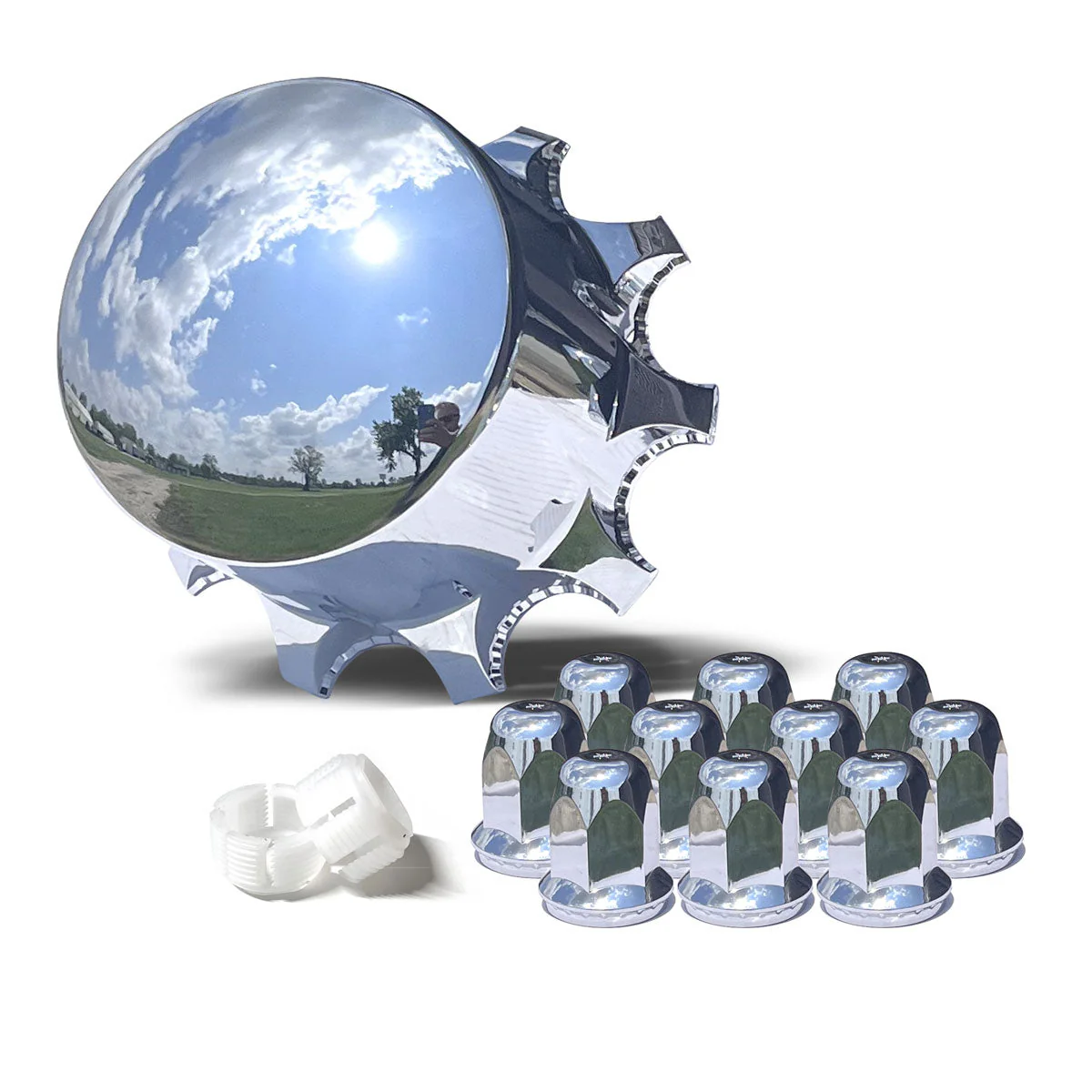

• Option 1 – Chrome Plastic (Recommended):

  ✔️ (2) Front Chrome Hub/Lug Nut Covers

  ✔️ (2) Rear Chrome Hub/Lug Nut Covers

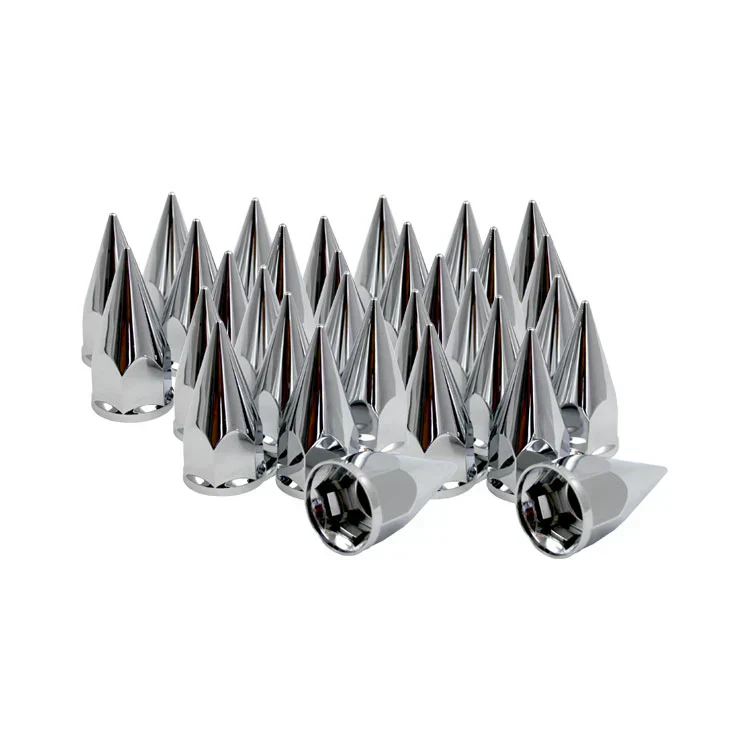

  Option 2 – Chrome Spike Nut Covers w/ Stainless Steel Caps:

  ✔️ (2) Chrome Spike Nut Covers w/ Front Stainless Steel Hub Covers

  ✔️ (2) Chrome Spike Nut Covers w/ Rear Stainless Steel Hub Covers

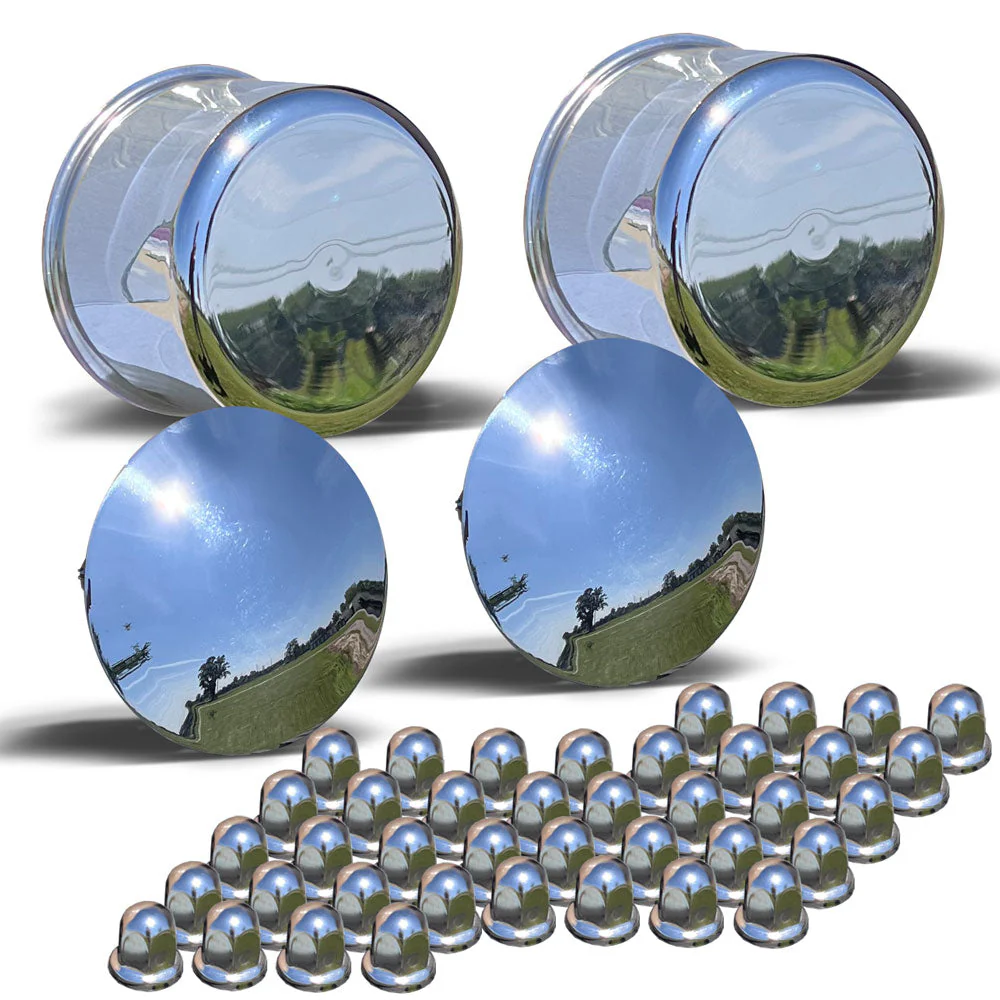

  Option 3 – Stainless Steel Caps and Nut Covers:

  ✔️ (2) Front Stainless Steel Hub/Lug Nut Covers

  ✔️ (2) Rear Stainless Steel Hub/Lug Nut Covers

---

✅ Approved Tire Sizes:

• 9R22.5

• 10R22.5

• 235/80R22.5

• 245/75R22.5

• 255/70R22.5 (Recommended)

---

🛞 Wheel Specs:

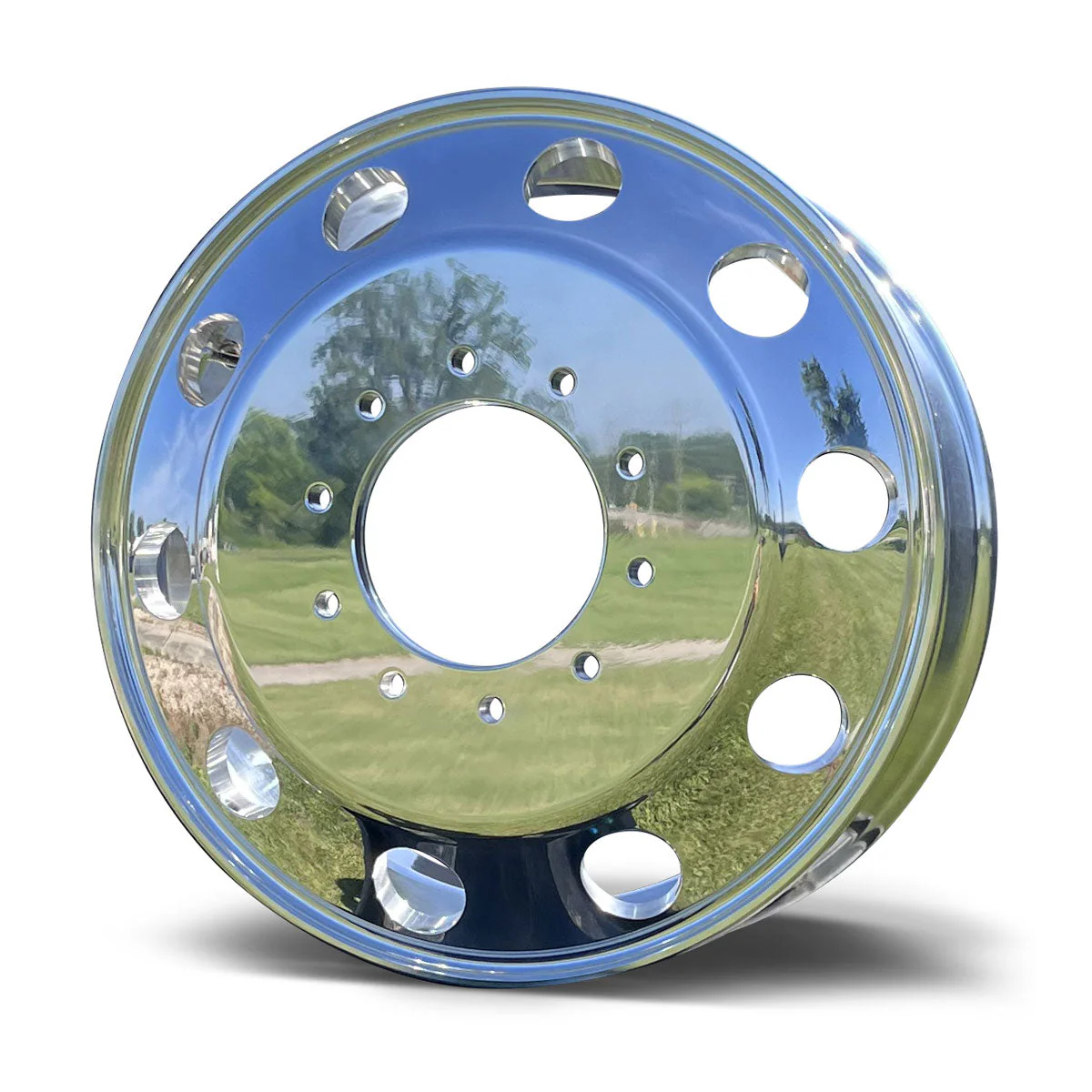

Aluminum Wheels (Northstar):

• Size: 22.5” x 6.75”

• Finish: Mirror Polished Aluminum

• Bolt Pattern: 10-Hole, 225mm

• Hub Bore: 170.1mm

• Offset: 5.98”

• Max Load: 6,000 lbs

• Valve Stem: TR545D

• Mounting: Hub Pilot, Dual-Mounting

• Hand Holes: 10

Steel Inner Wheels (Jantsa):

• Size: 22.5” x 6.75”

• Finish: Black or White Steel

• Bolt Pattern: 10-Hole, 225mm

• Hub Bore: 170.1mm

• Offset: 5.67”

• Max Load: 5,000 lbs

• Valve Stem: TR545D

• Mounting: Hub Pilot, Dual-Mounting

• Hand Holes: 5

---

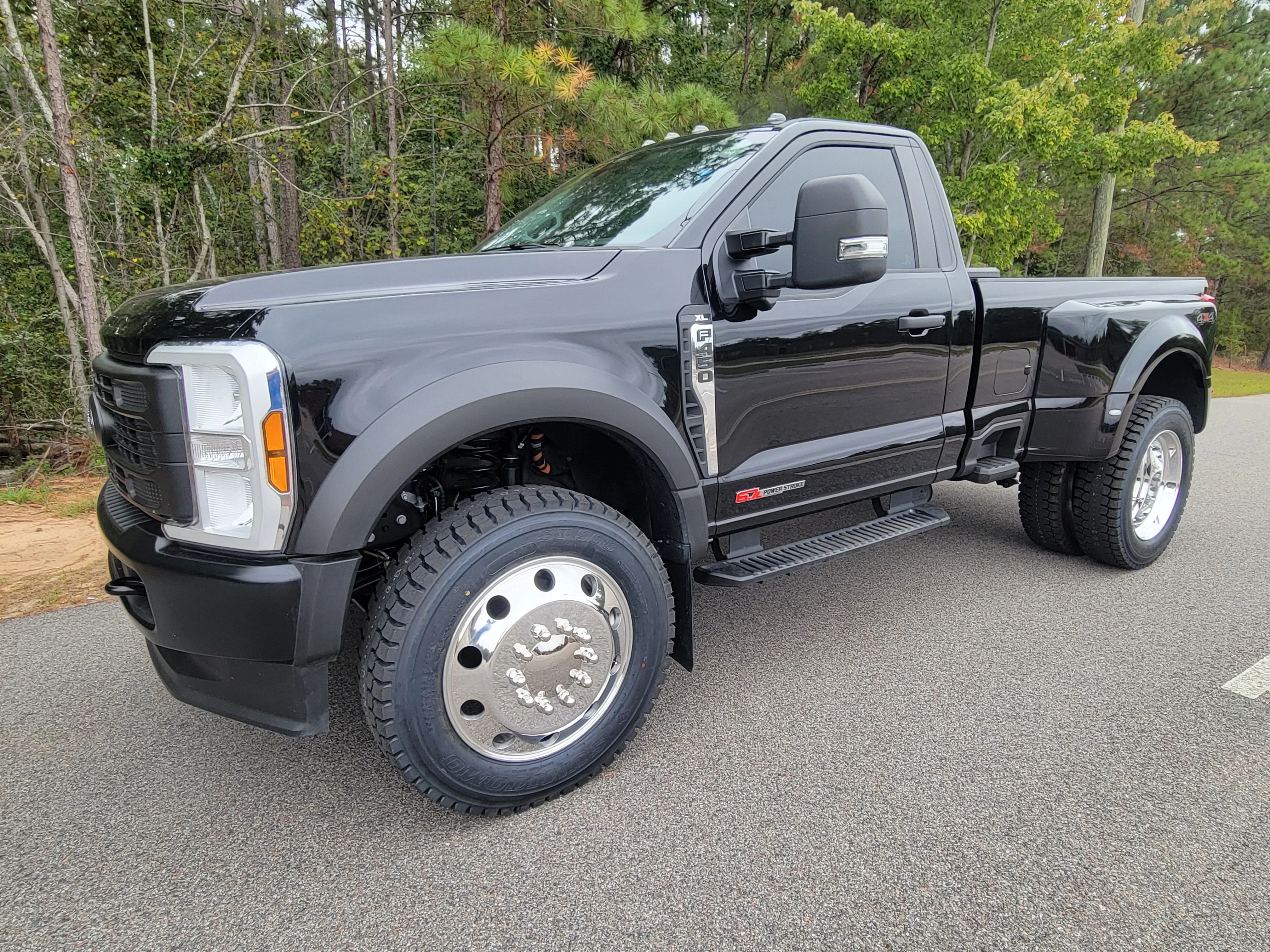

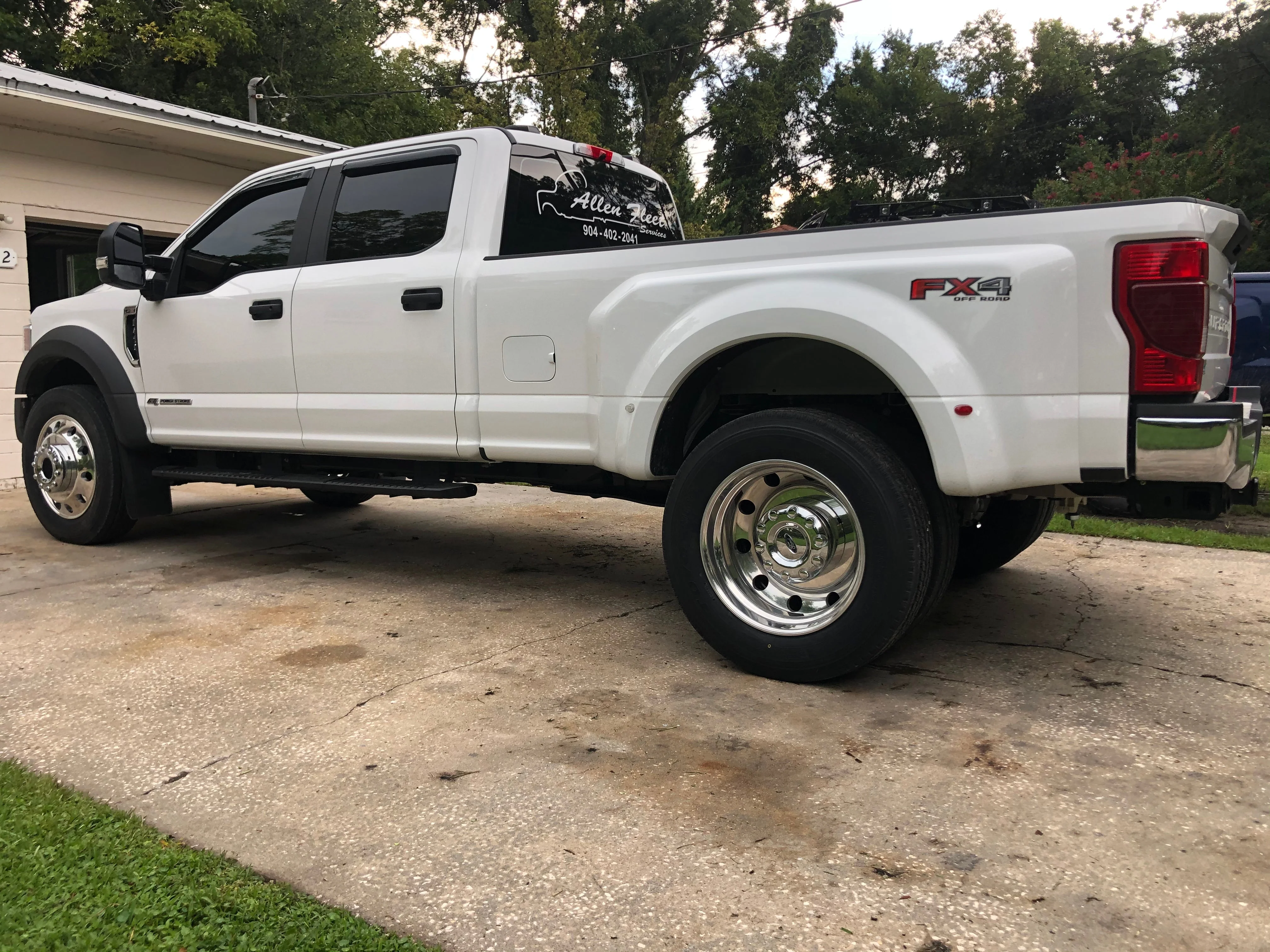

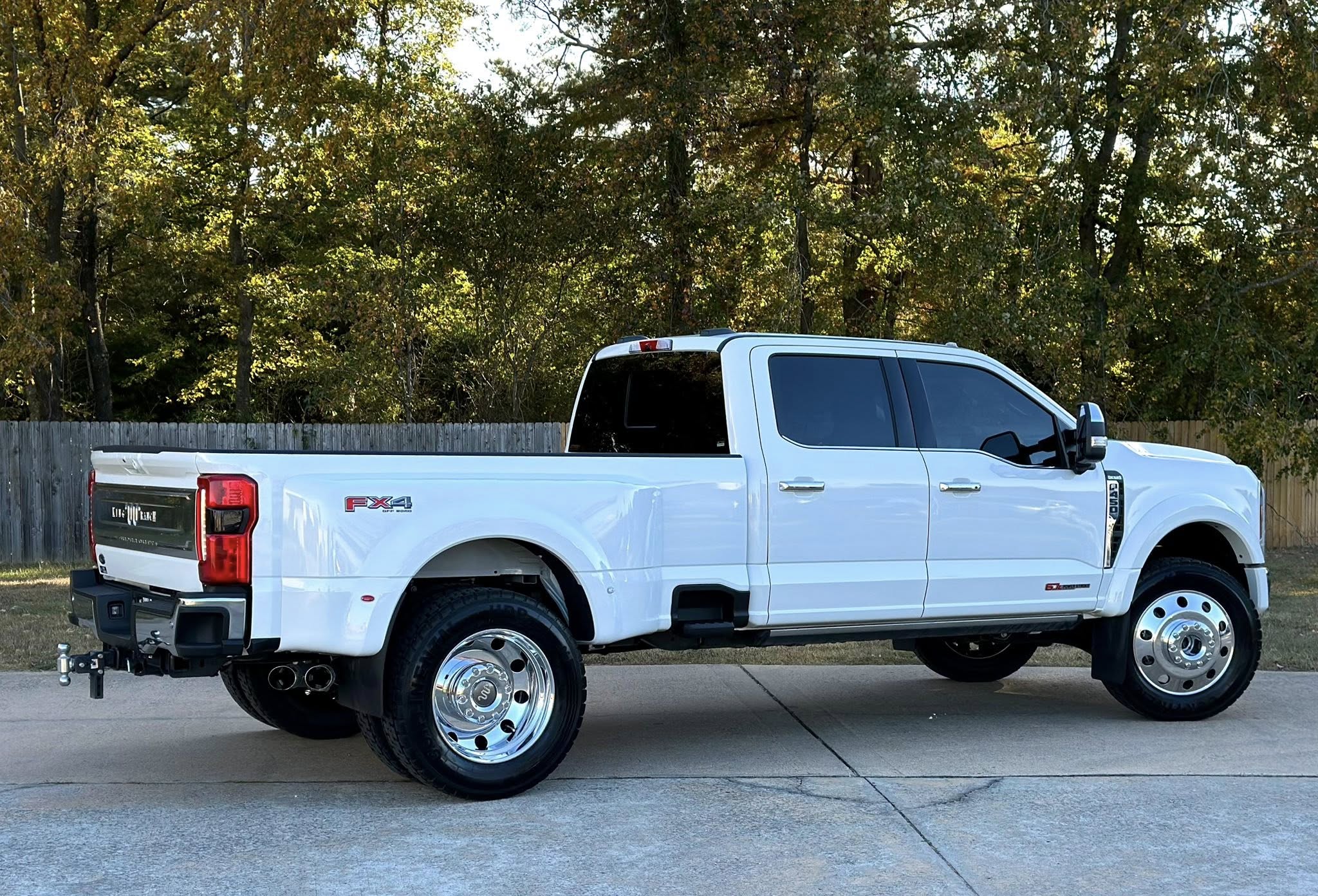

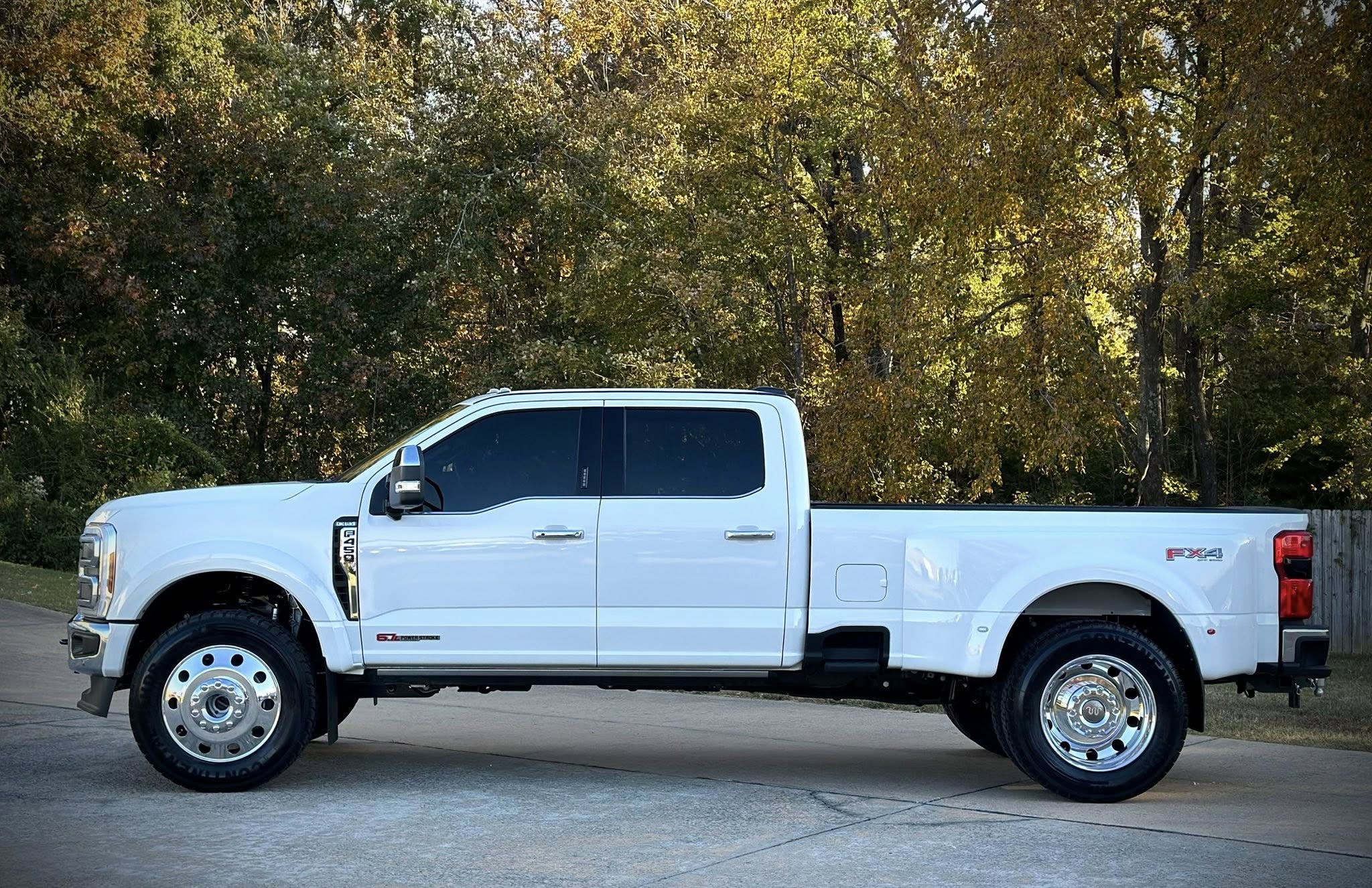

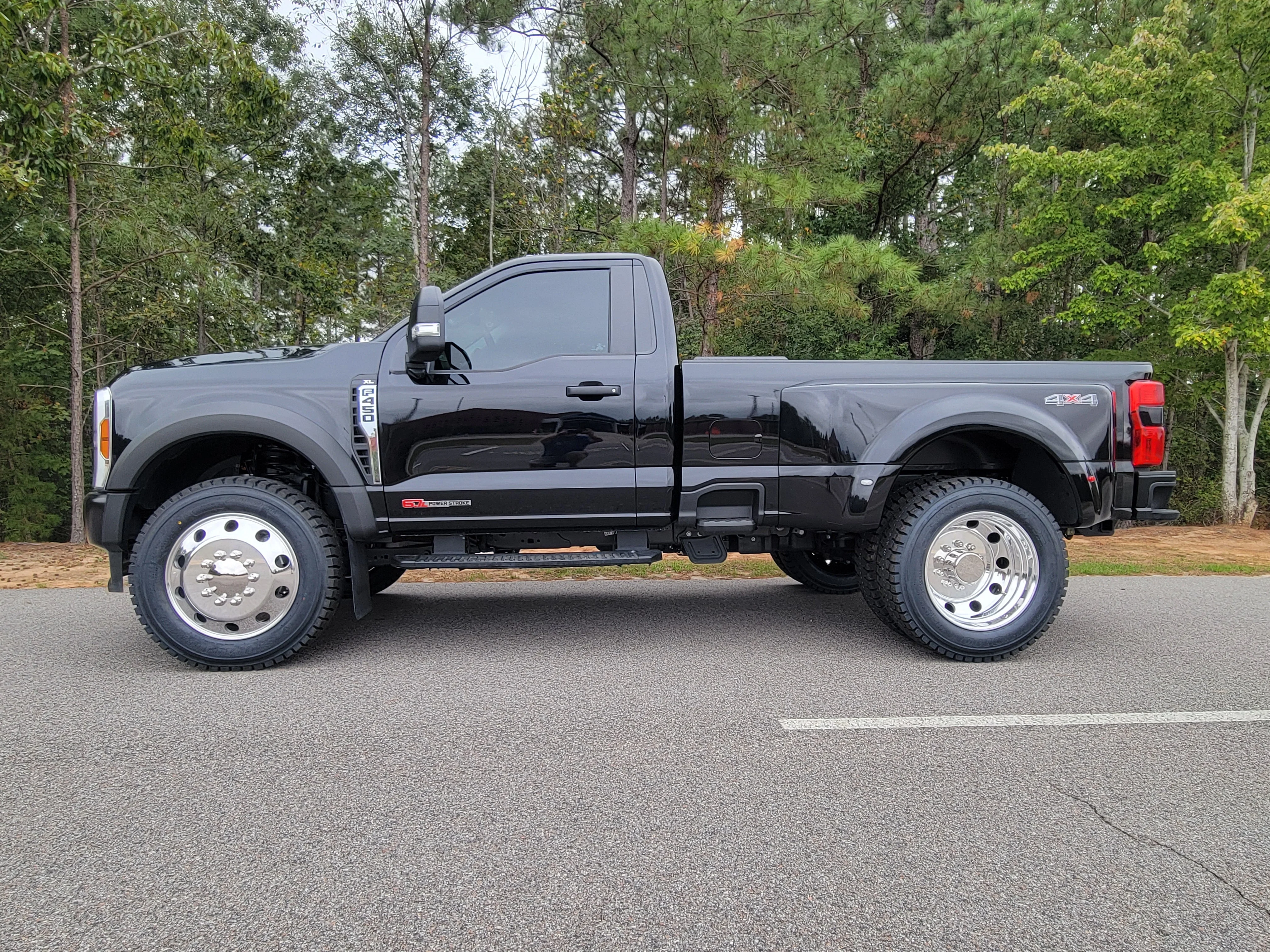

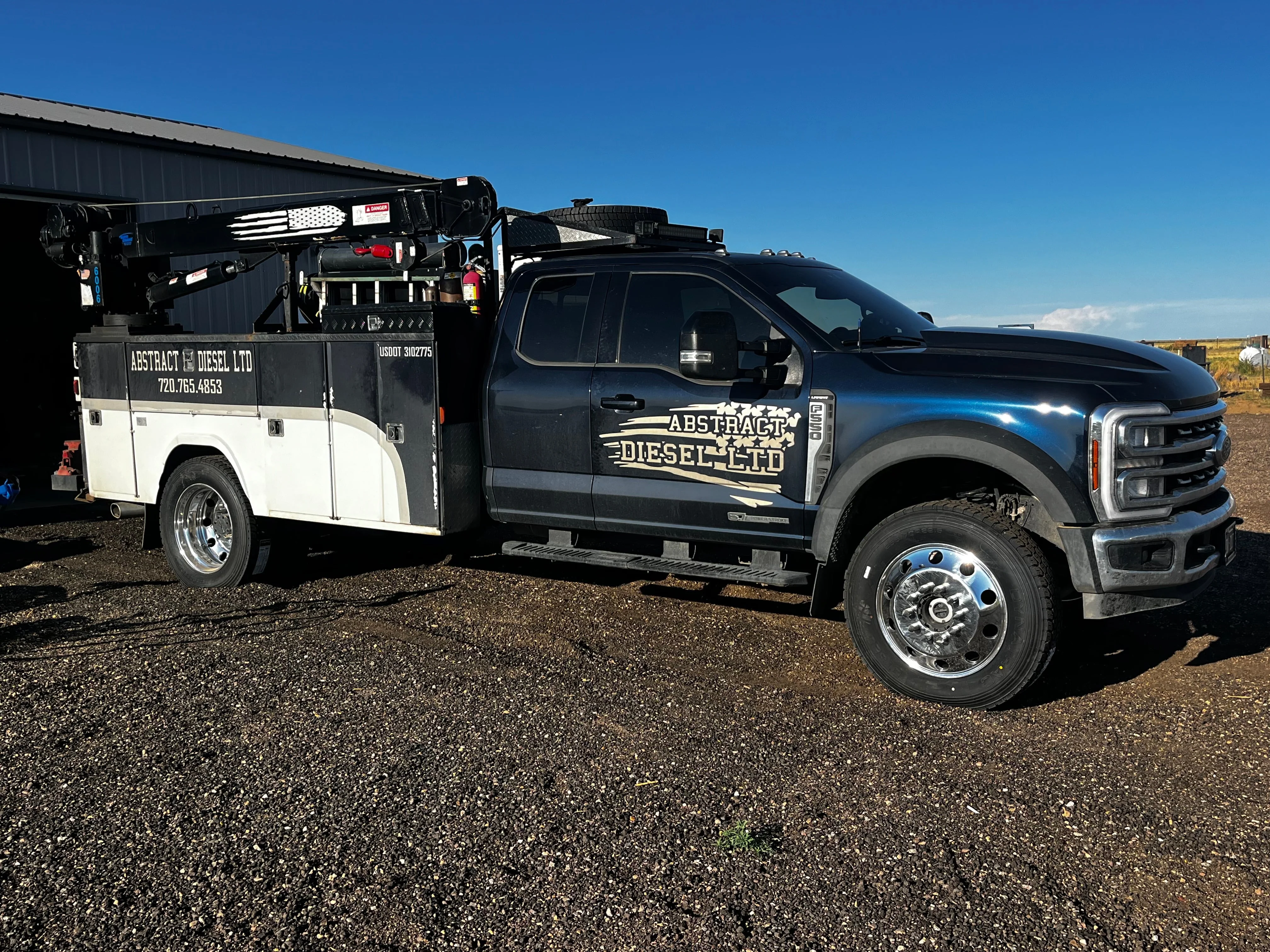

🚚 Vehicle Fitment:

Direct bolt-on for all dual rear wheel Ford F-450/F-550 trucks from 2005 to Present, including:

• F-450 DRW (2005–2024)

• F-550 DRW (2005–2024)

---

Whether you’re upgrading for commercial use or custom appeal, this Northstar wheel kit delivers professional-grade performance, modern style, and long-term durability—all in one complete, easy-to-install package.
