Upgrade your Ram 4500 or 5500 with this heavy-duty 22.5 direct bolt-on wheel kit from Northstardesigned for strength, professional looks, and reliable performance. This complete 6-wheel package includes four mirror-polished aluminum wheels and two steel inner dual wheels, delivering both stunning aesthetics and true commercial-grade durability.

Built for hub-piloted, dual-mount systems with a 10x225mm bolt pattern and 170.1mm hub bore, this kit is a direct bolt-on fit for 2012Present Ram 4500 and 5500 dual rear wheel (DRW) trucks no adapters or conversions required .

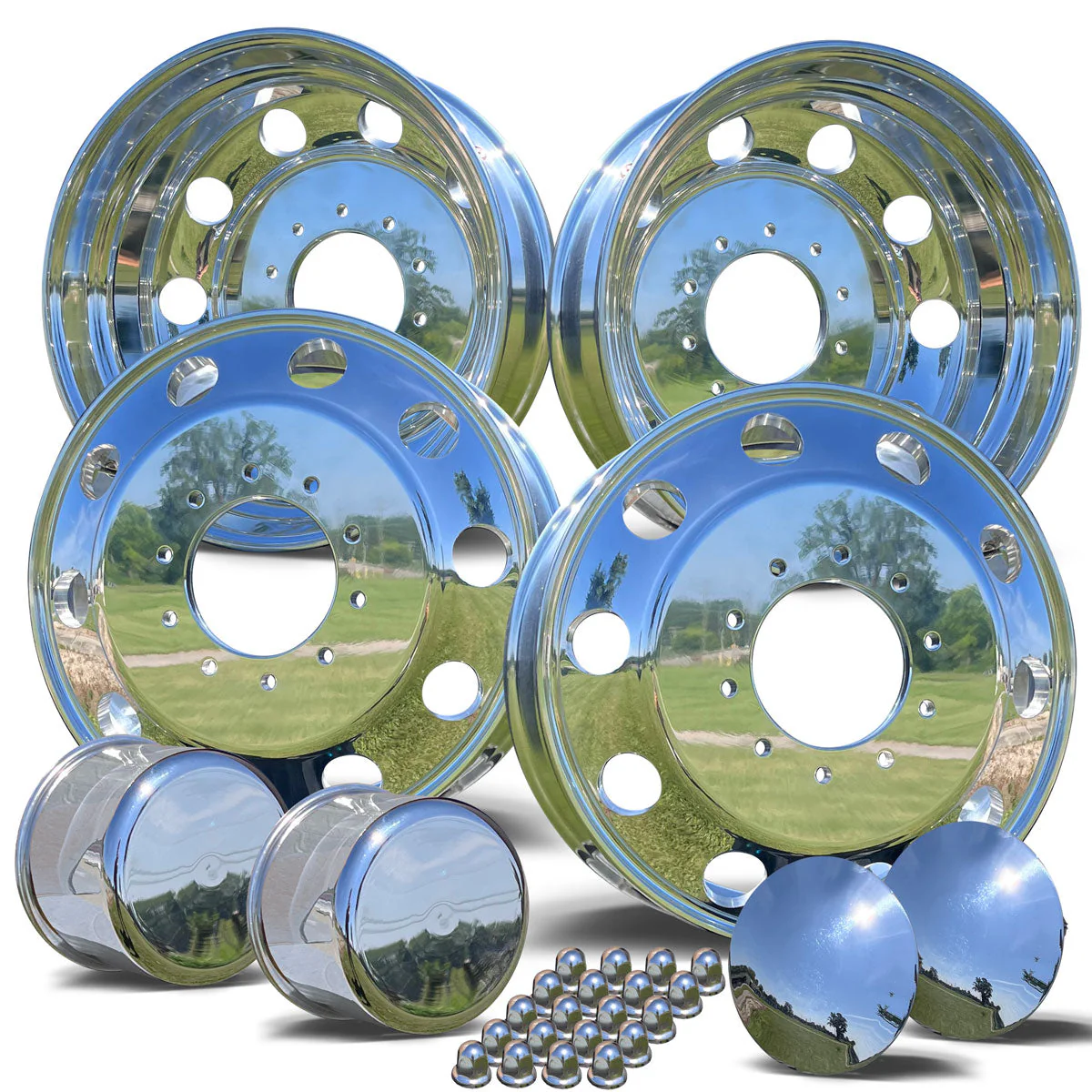

Kit Includes:

Note: On some Ram 4500/5500 models, slight front bumper trimming or modification may be required for full clearance when turning, depending on tire size and suspension height.

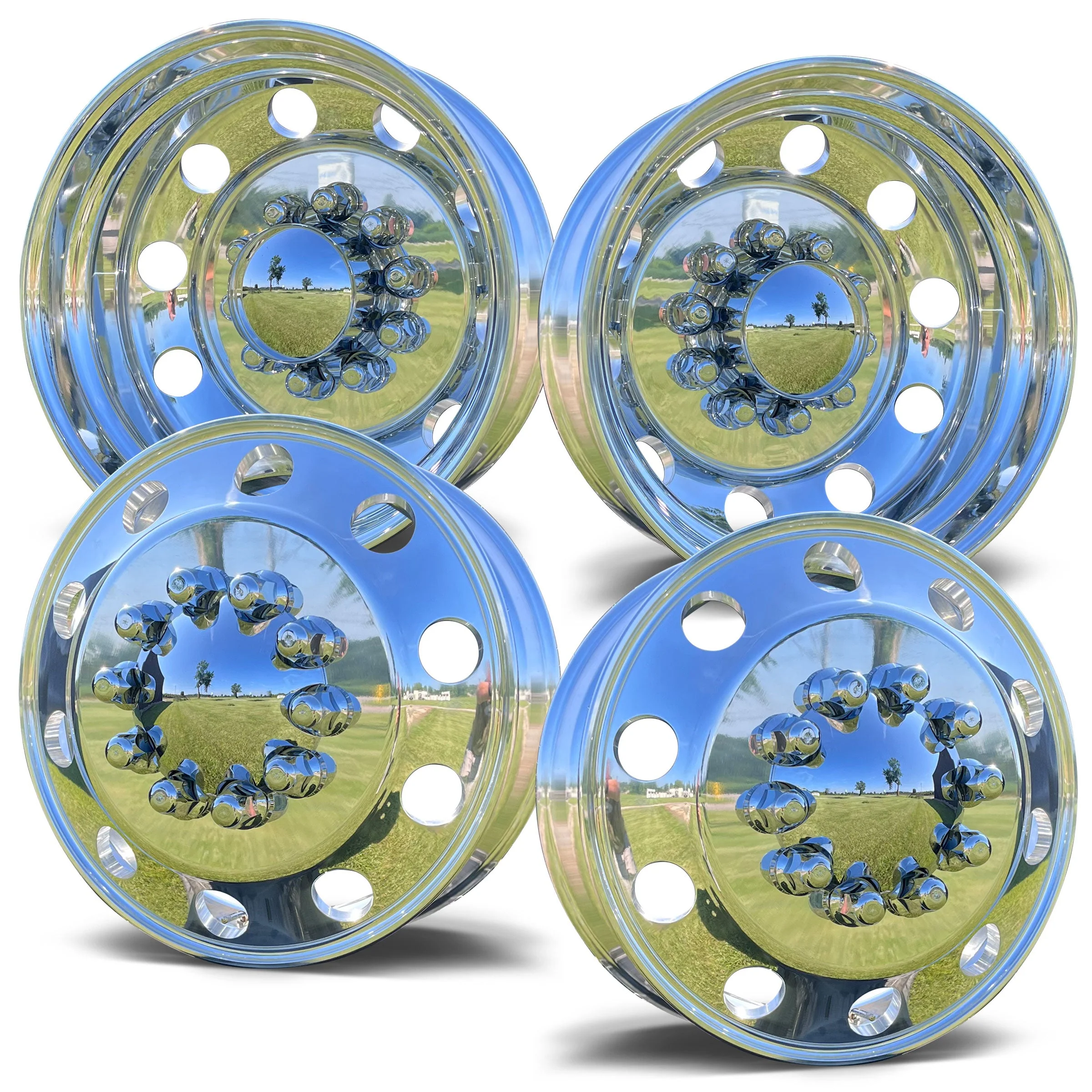

• (4) Northstar 22.5 x 6.75 Aluminum Wheels Mirror polished on both sides
• (2) Jantsa 22.5 x 6.75 Steel Inner Dual Wheels

Hub/Nut Cover Options:

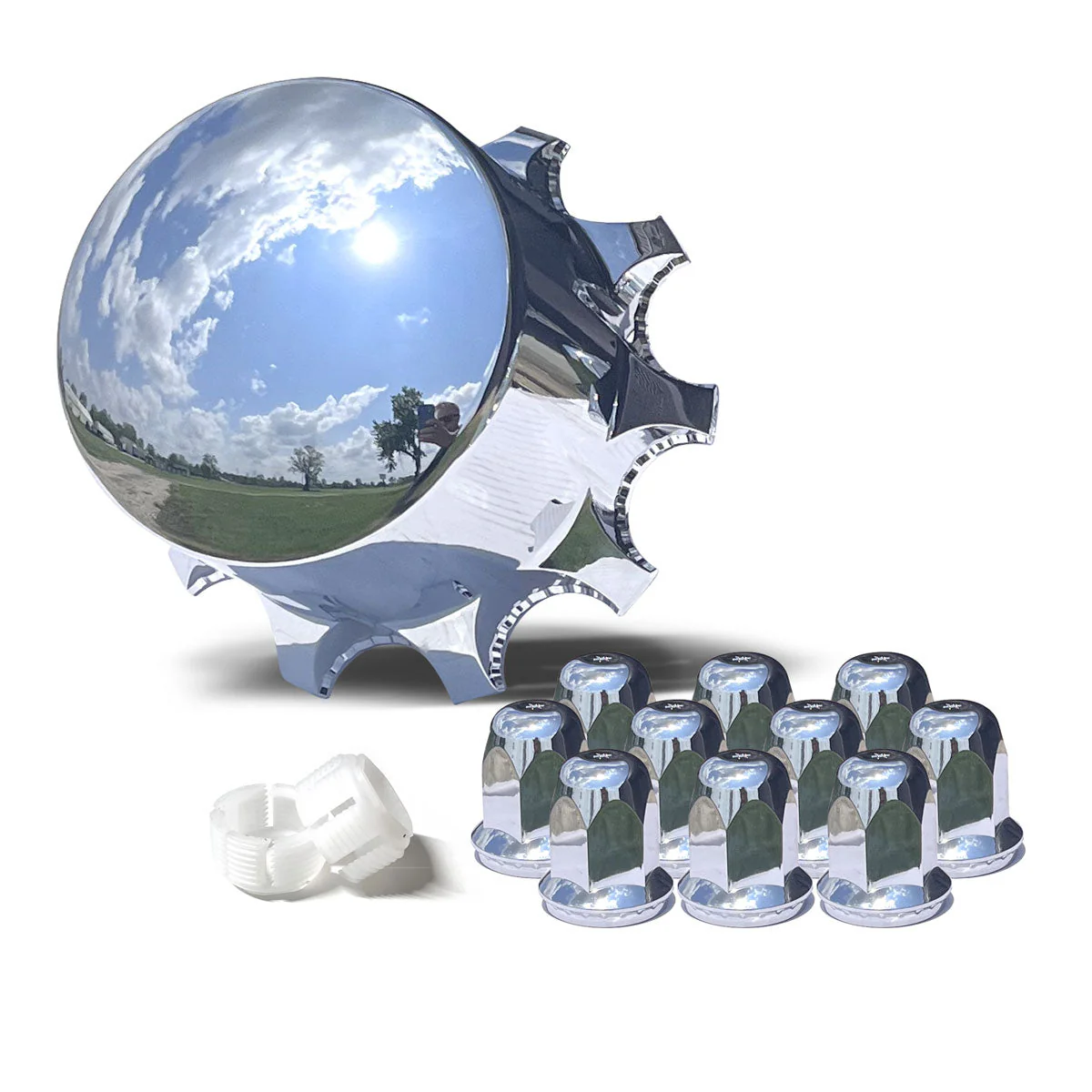

Option 1 Chrome Plastic (Recommended):

(2) Front Chrome Hub/Lug Nut Covers

(2) Rear Chrome Hub/Lug Nut Covers

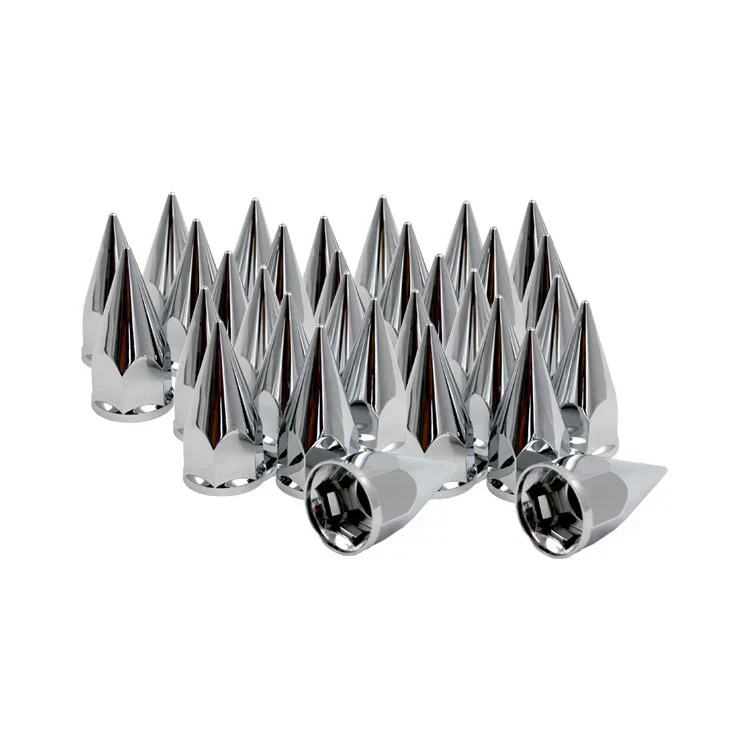

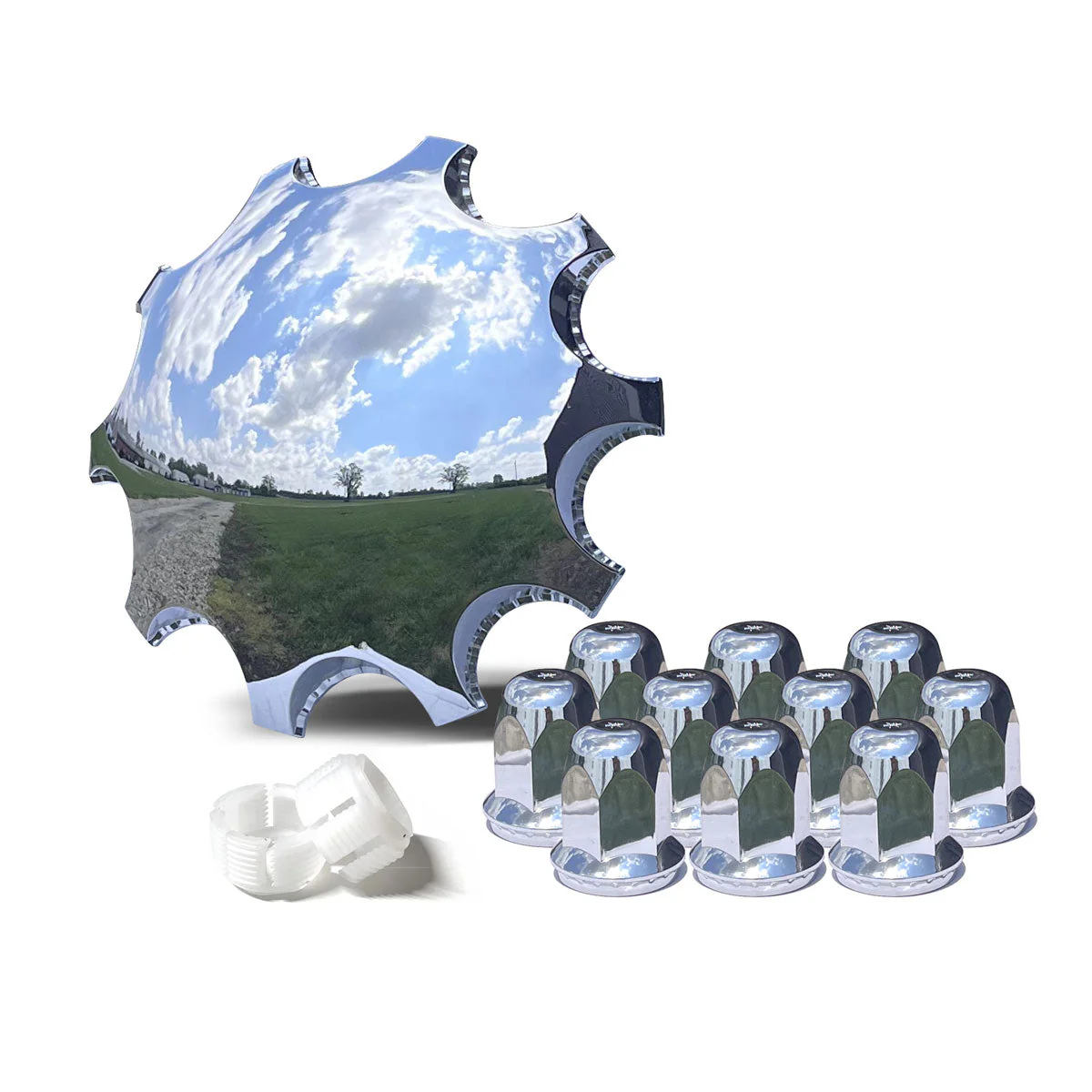

Option 2 Chrome Spike Nut Covers w/ Stainless Steel Caps:

(2) Chrome Spike Nut Covers w/ Front Stainless Steel Hub Covers

(2) Chrome Spike Nut Covers w/ Rear Stainless Steel Hub Covers

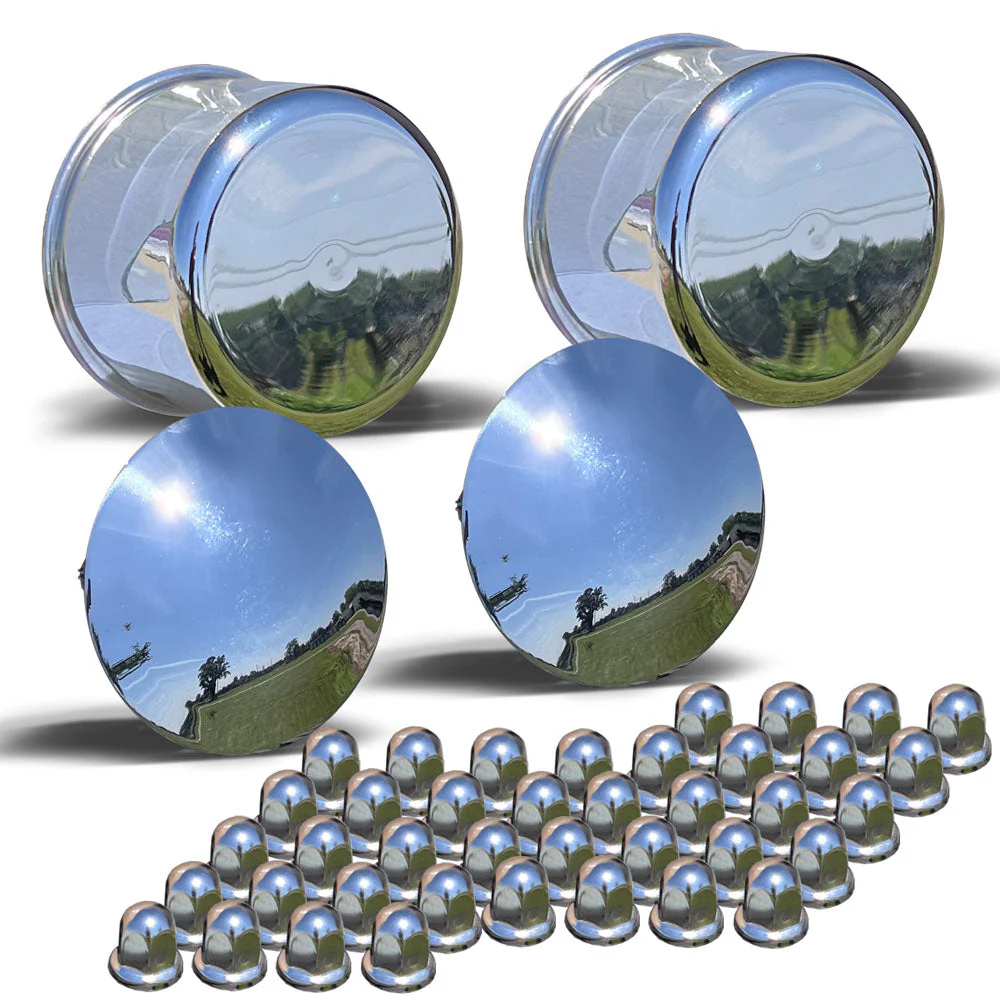

Option 3 Stainless Steel Caps and Nut Covers:

(2) Front Stainless Steel Hub/Lug Nut Covers

(2) Rear Stainless Steel Hub/Lug Nut Covers

Approved Tire Sizes:

• 9R22.5
• 10R22.5
• 235/80R22.5
• 245/75R22.5
• 255/70R22.5
• (Recommended)

Wheel Specs:

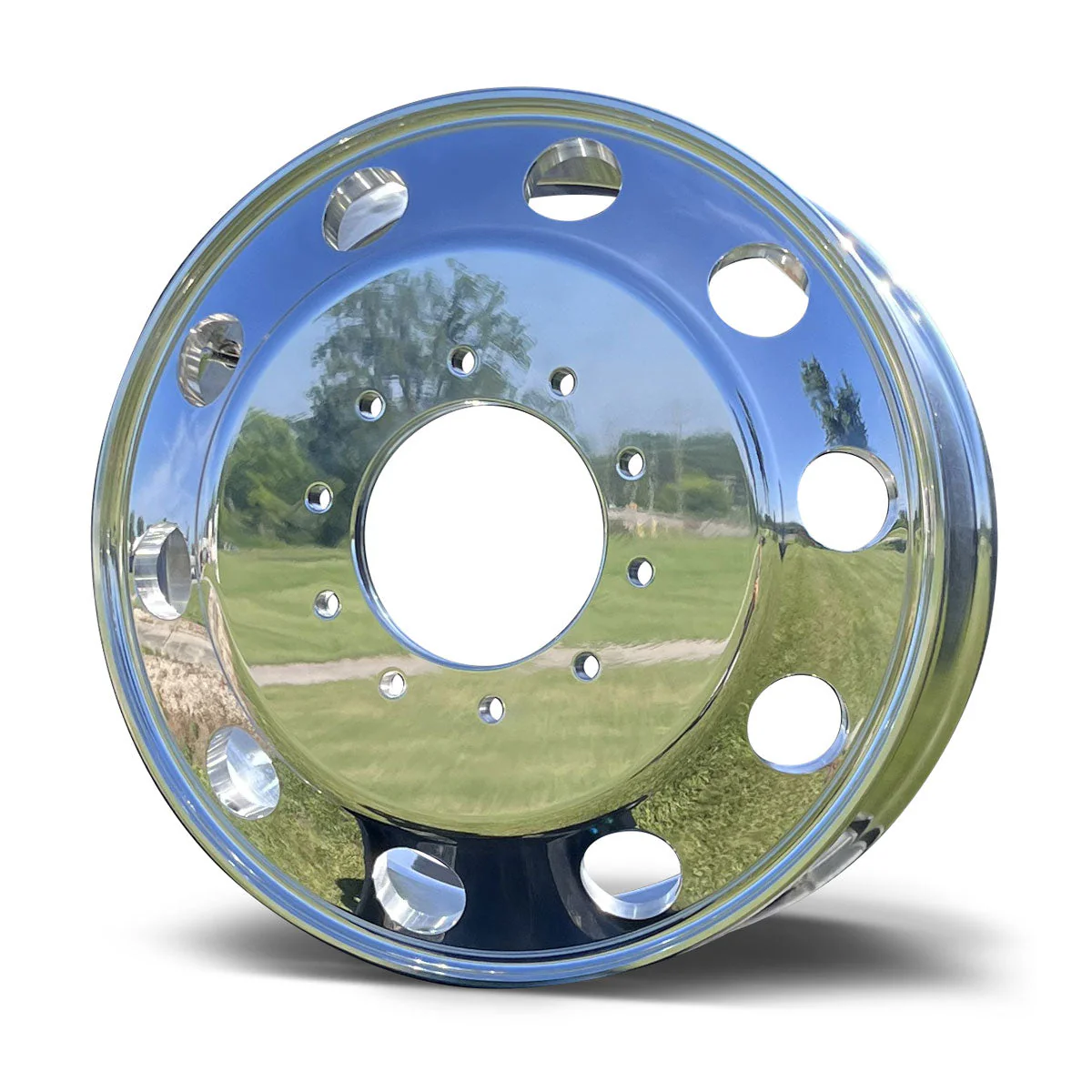

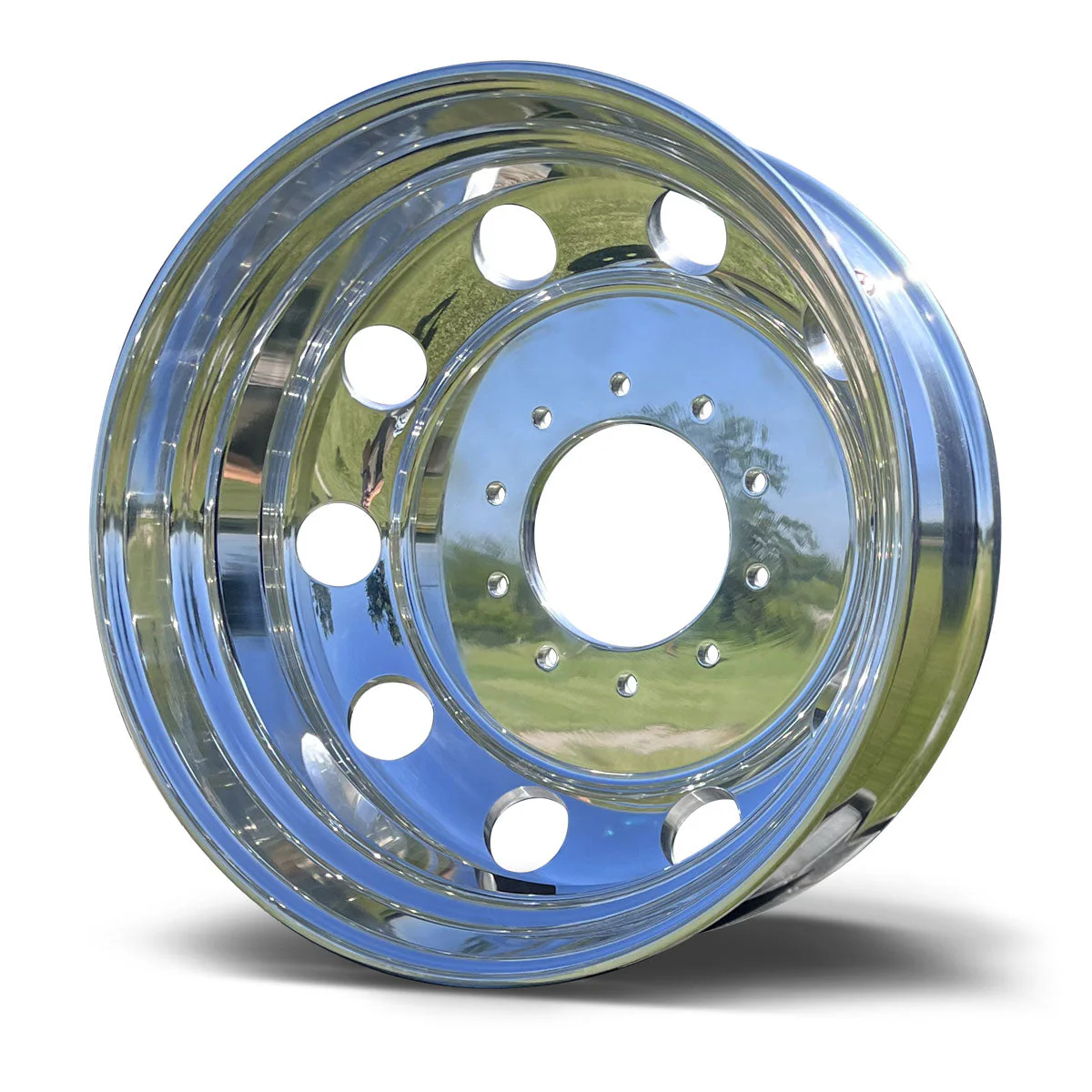

Aluminum Wheels (Northstar):

• Size: 22.5 x 6.75
• Finish: Mirror Polished (Both Sides)
• Bolt Pattern: 10-Hole, 225mm
• Hub Bore: 170.1mm
• Offset: 5.98
• Max Load: 6,000 lbs
• Valve Stem: TR545D
• Mounting: Hub-Piloted, Dual-Mounting
• Hand Holes: 10

Steel Inner Wheels (Jantsa):

• Size: 22.5 x 6.75
• Finish: Black or White Steel
• Bolt Pattern: 10-Hole, 225mm
• Hub Bore: 170.1mm
• Offset: 5.67
• Max Load: 5,000 lbs
• Valve Stem: TR545D
• Mounting: Hub-Piloted, Dual-Mounting
• Hand Holes: 5

Vehicle Fitment:

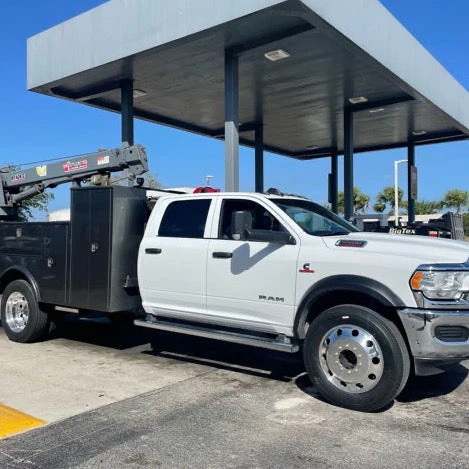

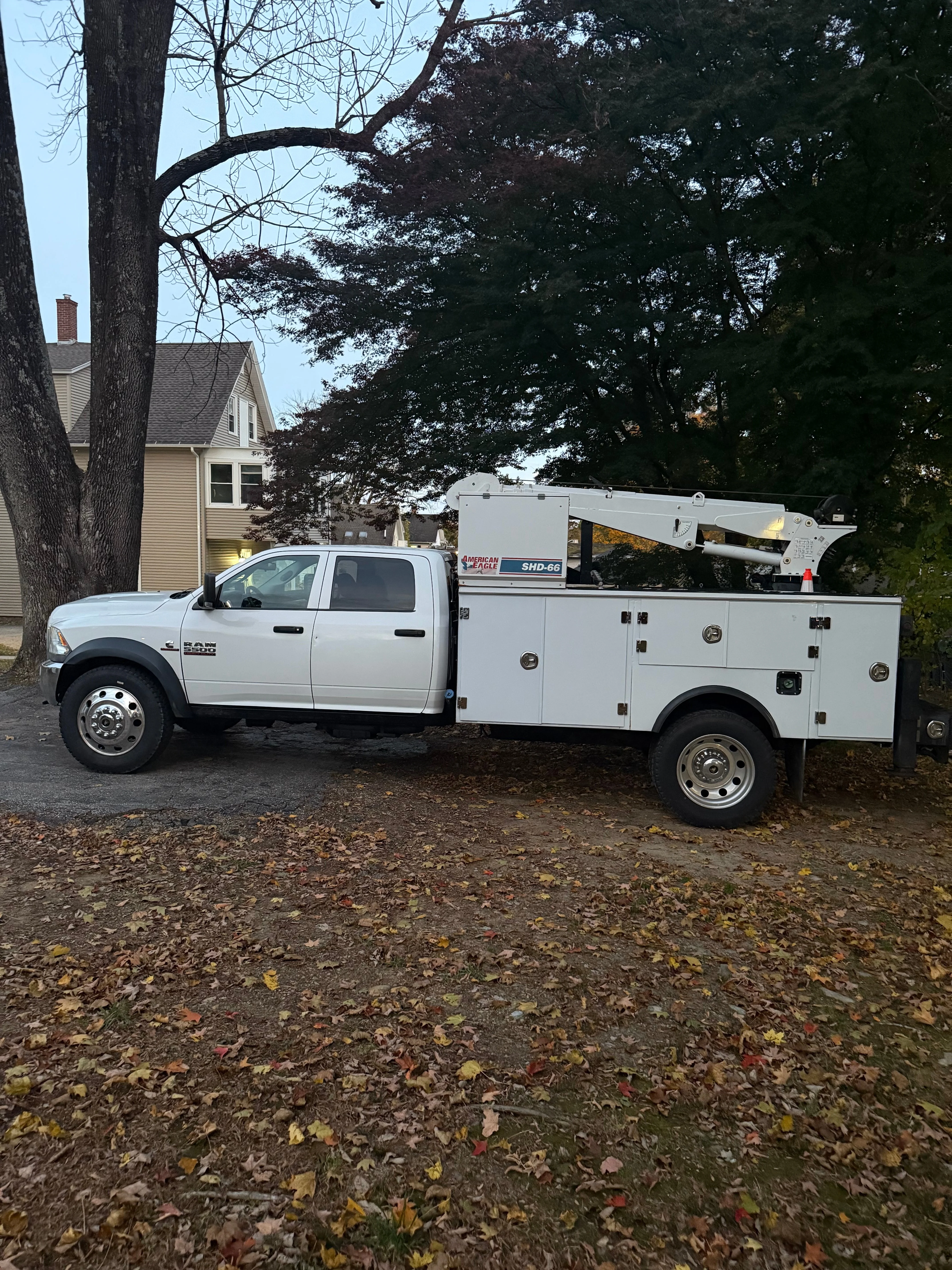

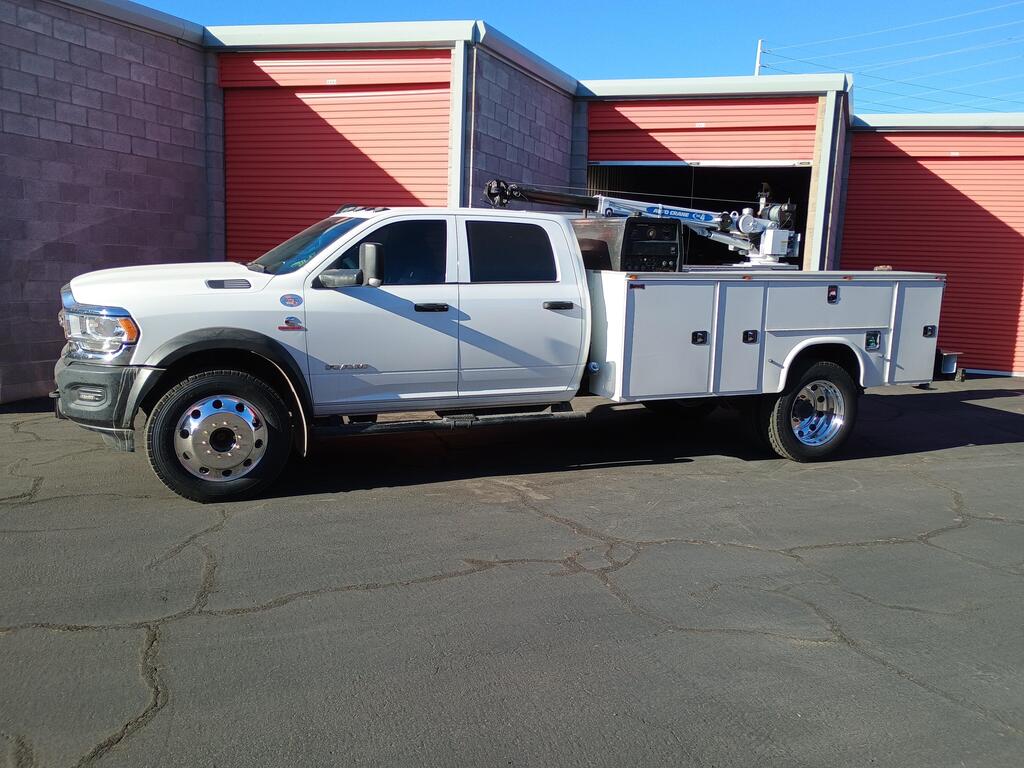

Direct bolt-on fit for all dual rear wheel Ram 4500 & Ram 5500 trucks from 2012 to Present , including:

• Ram 4500 DRW (2012Present)
• Ram 5500 DRW (2012Present)

Whether youre upgrading for fleet reliability or custom show-truck style, this Northstar wheel kit delivers industry-leading performance, long-term durability, and bold mirror-polished appealall in one ready-to-install package.
